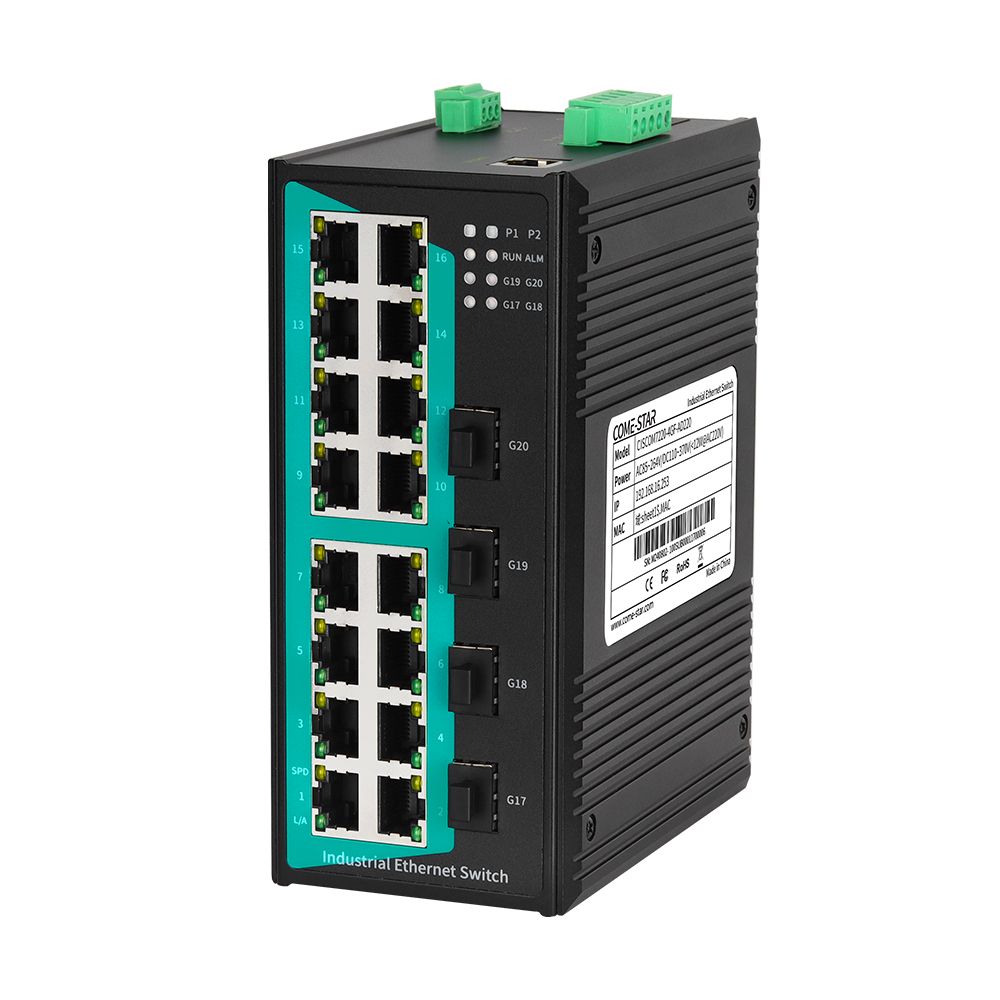

CISCOM7220-4GF, 4xGbit SFP, 16x100M Port Layer2 Ethernet Switch
20-port Gigabit Layer 2 Din-Rail Managed Endüstriyel Ethernet Switch
-4xGbit SFP Portu, 16x100Mbit RJ45 port.
-CLI ile swith'e ulaşım imkanı
-EAPS, MSTP, VRRP çeşitli yedeklilik protokollerini destekler
-SNMP, PMON, Telnet ağ yönetimi protokolerini destekler
-L2-L7 katman verilerine dayalı donanım ACL filtrelemesini destekler
-Gerçek zamanlı saldırı izleme ve port trafiği limitleme imkanı
-Static multicast/dynamic IGMP snooping/multicast traffic filtering
-Port VLAN/IEEE 802.1q VLAN/QoS/port aggregation/port mirroring/IEEE802.1p/ToS DiffServe desteği
-FTP/TFTP'ye dayalı çevrimiçi yazılım güncellemesi
-Geniş çalışma sıcaklığı aralığı -40 ila 85°C
-MTBF≥ 300.000 saat
|
Software performance |
|
|
Redundancy protocol |
Support MW-Ring and the recovery time<50ms Support STP/RSTP/EAPS/LACP |
|
Multicast routing |
Support IGMP snooping/ IGMP v1/v2/v3 Support GMRP |
|
Management and maintenance |
Support Console and Web management methods |
|
Technical specifications |
|
|
Ethernet Standard |
IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base-FX IEEE802.3x-Flow Control IEEE802.3z-1000BaseLX IEEE802.1ab IEEE802.1D-Spanning Tree Protocol IEEE802.1w-Rapid Spanning Tree Protocol IEEE802.1Q -VLAN Tagging IEEE802.1p -Class of Service |
|
Switch properties |
|
|
Priority queue |
4 |
|
VLAN ID |
1-4096 |
|
IGMP Groups |
256 |
|
MAC table |
8k |
|
Switch Bandwidth |
12.8Gbps |
|
Switch Latency |
<5μs |
|
Interface |
|
|
Gigabit port |
Port numbers: 4 |
|
Connector: SFP for fiber port(LC, single or multi-mode)or adaptive 10/100/1000M-Tx module |
|
|
Baud rate:1000Base-LX(fiber port), 10/100/1000M auto-negotiation for copper port |
|
|
10/100Base port |
Port numbers:16 |
|
Connector:9 fixed FX(single/multi-mode; SC/FC/ST) or RJ45 port |
|
|
Baud rate:100Base-FX; auto-negotiation 10/100Base-Tx |
|
|
Console port |
RS232/RJ45 |
|
Terminal block for power input |
5.08mm terminal block |
|
Terminal block for relay alarm |
5.08mm terminal block,1A@24VDC |
|
Communication distance |
|
|
Twisted-pair |
100m(CAT5/CAT5e cable) |
|
Multi-mode fiber |
Gigabit multi-mode: 850nm 550m; 10/100Base multi-mode: 1310nm 2km |
|
Single mode fiber |
Gigabit single mode: 1310nm 20km; 10/100Base single mode:1310nm 20/40km;1550nm 60/80km |
|
LED indicator lights |
|
|
Front panel LED lights |
Port light: LINK/ACT; SPEED; Gx |
|
Running light: RUN |
|
|
Power LED: PWR1/PWR2 |
|
|
Power requirements |
|
|
Power input |
DC12-48V AD220V, |
|
Full-load consumption |
<14W |
|
Overload protection |
support |
|
Inversed protection |
support |
|
Redundancy protection |
support |
|
Working environment |
|
|
Operating Temperature |
-40°C~85°C |
|
Storage temperature |
-40°C~85°C |
|
Ambient Humidity |
5%~95%( non-condensing) |
|
Physical characteristics |
|
|
Shell |
IP40 protection, aluminum alloy shell |
|
Installation |
35mm din rail-mounted installation |
|
Dimension |
72mmx156mmx120mm(MISCOM7220-4GF & MISCOM7220-4GF-4F) 60mm×74mm×122mm（MISCOM7220-4GF-8F） |
|
Industry standard |
|
|
EMC |
EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5 |
|
Impact |
IEC60068-2-27 |
|
Falling |
IEC60068-2-32 |
|
Shock |
IEC60068-2-6 |
|
Warranty |
|
|
Warranty period |
5 Years |
|
Certification |
CE, FCC, RoHS |
| Kodu | Model | Açıklama |
|---|---|---|
| CISCOM7220-4GF | CISCOM7220-4GF | 4xGbit SFP + 4x100M Fiber - 16x100M RJ45, Aux: 9-60Vdc |
| CISCOM7220-4GF-AD220 | CISCOM7220-4GF | 4xGbit SFP + 4x100M Fiber - 16x100M RJ45, Aux: 85-264Vac veya 110-370Vdc |
