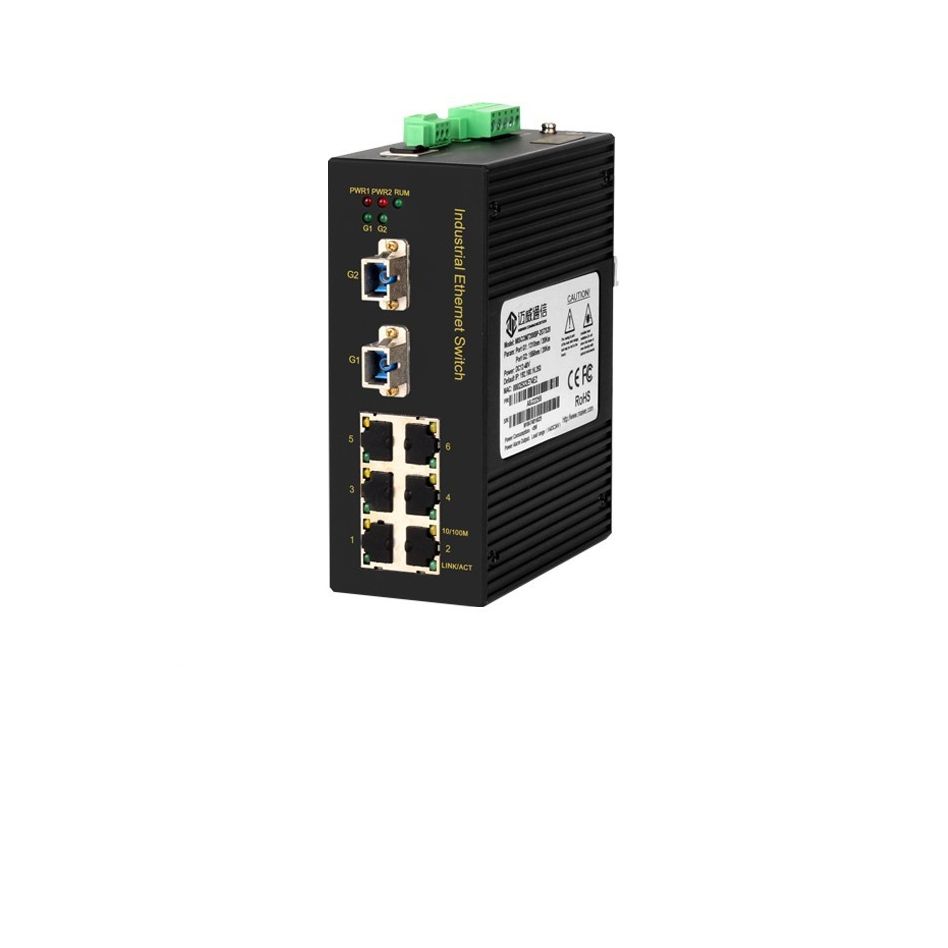

MISCOM7208BP-2GTS, 2 Gbit FX + 6x100M Bakır, BY-PASS Managed Switch
2 Gigabit fiber port +6x10/100M RJ45 bakır port, By-pass Managed Endüstriyel Ethernet Switch
-2 Gigabit fiberports +6x10/100M copper ports
-Support indicator status display (maintain network connectivity when the in-line system fails)
-Support static multicast/IGMP Snooping
-Support broadcast storm suppression/ Rate limit
-Support industrial grade dual power input backup
-Support independent dual redundant power supply configuration
- Support power loss, fiber drop, broadcast storm alarm output
-Support VLAN/Qos/Port link aggregation/port mirroring
-Industrial grade wide temperature/ fanless design
|
Software performance |
|
|
Redundancy protocol |
Support MW-Ring and the recovery time<20ms. Support STP/RSTP |
|
Multicast routing |
Support IGMP snooping/ IGMP v1/v2 Support GMRP Support static multicast |
|
Management and maintenance |
Support Console and Web management methods Support SNMPv1/v2c |
|
Technical specifications |
|
|
Ethernet Standard |
IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base-FX IEEE802.3x-Flow Control IEEE802.1D-Spanning Tree Protocol IEEE802.1w-Rapid Spanning Tree Protocol IEEE802.1Q -VLAN Tagging IEEE802.1p -Class of Service IEEE802.1X-Port Based Network Access Control |
|
Switch properties |
|
|
Priority queue |
4 |
|
VLAN number |
4096 |
|
IGMP Groups |
256 |
|
MAC table |
8k |
|
Switch Bandwidth |
5.2Gbps |
|
Switch Delay |
<5μs |
|
Interface |
|
|
Gigabit ports |
Port numbers: 2 |
|
Connector: 2 SC connector Single fiber bidirectional SFP |
|
|
Baud rate: 1000Base-LX(Fiber port) |
|
|
10/100M Base port |
Port numbers: 6 |
|
Connector: RJ45 100Base-Tx |
|
|
Baud rate: adaptive 10/100MBase-Tx |
|
|
Terminal block for power input |
5.08mm terminal block |
|
Terminal block for relay alarm |
5.08mm terminal block,1A@24VDC |
|
Communication distance |
|
|
Twisted-pair |
100m(CAT5/CAT5e cable) |
|
Fiber |
20km/40km/60km/80km |
|
LED indicator lights |
|
|
Front panel LED |
Port light: LINK/ACT; SPEED |
|
Running light: RUN |
|
|
Power LED: PWR1/PWR2 |
|
|
Power Requirements |
|
|
Power input |
DC12-48V(support dual power Redundant input) |
|
Full-load consumption |
<6W |
|
Overload protection |
support |
|
Inversed protection |
support |
|
Redundancy protection |
support |
|
Working Environment |
|
|
Operating Temperature |
-40°C~85°C |
|
Storage temperature |
-40°C~85°C |
|
Ambient Humidity |
5%~95%( non-condensing) |
|
Physical Characteristics |
|
|
Shell |
IP40 protection, aluminum alloy shell |
|
Installation |
35mm din rail-mounted installation |
|
Dimension |
54mmx138mmx110mm |
|
Industry standard |
|
|
EMC |
EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5 |
|
Impact |
IEC60068-2-27 |
|
Falling |
IEC60068-2-32 |
|
Shock |
IEC60068-2-6 |
|
Warranty |
|
|
Warranty |
5 Years |
|
Certification |
CE/FCC/RoHS |
| Kodu | Model | Açıklama |
|---|---|---|
| MISCOM7208BP-2GTS | MISCOM7208BP-2GTS | MISCOM7208BP-2GTS, 2 Gbit FX + 6x100M RJ45 BY-PASS Managed Switch |
