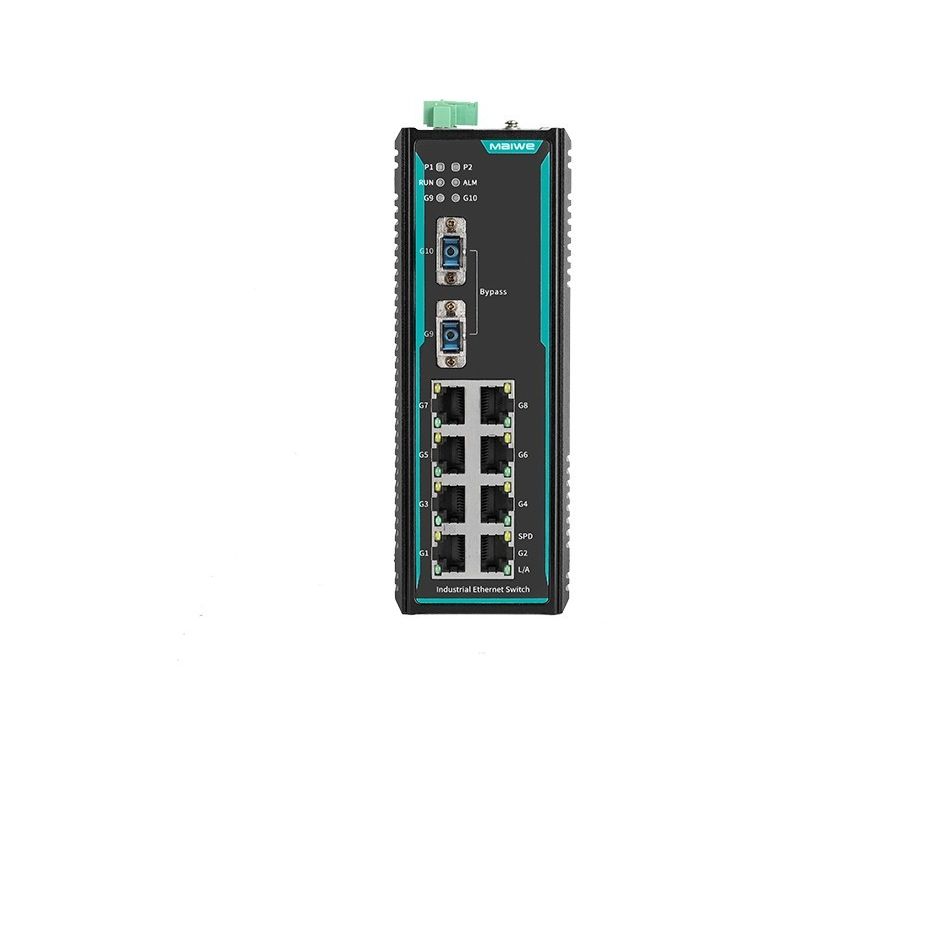

MISCOM7210GBP-2GTS, 10xGbit BY-PASS Managed Switch
10 port full gigabit BY-PASS yönetilebilir endüstriyel ethernet switch
-1000Base-X full-duplex single-fiber bidirectional interface, supports power-down bypass function
-10/100/1000Base-TX adaptive Ethernet interface (full duplex, half duplex), support automatic MDI/MDI-X connection
-Embedded web server, remote management and configuration via browser
-Link redundancy self-recovery technology based on MW-Ring technology, the self-healing time is less than 20ms
-Trunk port aggregation
-Implement broadcast storm detection control (including broadcast, multicast, unknown unicast and other storm type detection
- Online firmware upgrade
-Dynamic IGMP Snooping support, filter multicast traffic
-Bandwidth management to prevent unpredictable network problems
-Based on IEEE 802.1Q VLAN
-Support QoS, IEEE802.1p and ToS/DiffServe to improve communication quality
-Support port mirroring for online debugging
-Real-time network time synchronization
-Restrict accessible IP, manage switches in the network
|
Software performance |
|
|
Redundancy protocol |
Support MW-Ring and the recovery time<20ms. Support MSTP/RSTP |
|
Multicast routing |
Support IGMP snooping/ IGMP v1/v2 Support GMRP Support static multicast |
|
Switching functions |
Support VLAN, GVRP |
|
Support port speed limit, support storm suppression |
|
|
Support port trunking |
|
|
Support port flow control |
|
|
Management and maintenance |
Support Console and Web management methods Support SNMPv1/v2c |
|
Technical specifications |
|
|
Ethernet Standard |
802.3,802.3u,802.3z,802.3x,802.1p,802.1Q,802.1d/w and so on. |
|
Switch properties |
|
|
VLAN number |
4096 |
|
MAC table |
8k |
|
Switch Bandwidth |
20Gbps |
|
Interface |
|
|
Gigabit ports |
2x1000Base-X |
|
Luminous power: >-12dBm (single-mode) >-17dBm (multi-mode) |
|
|
Light receiving sensitivity: <-38dBm (single-mode) <-35dBm (multi-mode) |
|
|
Wavelength: 1310nm (single mode), 1550nm (single mode) 850 nm (multimode), 1310 nm (multimode) |
|
|
Transmission distance: multimode fiber 850nm, 2km; 1310 nm, 2/5km Single mode fiber 1310nm, 20/40/60km; 1550nm, 20/40/60/80/120km |
|
|
Connector type: SC |
|
|
Transmission rate: 1.25Gbps (gigabit) |
|
|
Copper port |
Physical interface: RJ45 with shield, IEEE802.3 standard |
|
Transmission distance: 100 meters (standard CAT5/CAT5e cable) |
|
|
8x10/100/1000Base-T RJ45 ports |
|
|
RJ45 port: 10Base-T/100Base-TX/1000Base-TX, support auto-negotiation function |
|
|
Terminal block for power input |
5.08mm terminal block |
|
Terminal block for relay alarm |
3.81mm terminal block,1A@24VDC |
|
Power Requirements |
|
|
Power input |
Input voltage: DC12~48V, support dual power supply redundancy, non-polarity input |
|
Full-load consumption |
<12W@24V(MAX) |
|
Overcurrent protection: |
built-in |
|
Working Environment |
|
|
Operating Temperature |
-40°C~75°C |
|
Storage temperature |
-40°C~85°C |
|
Ambient Humidity |
5%~95%( non-condensing) |
|
Physical Characteristics |
|
|
Shell |
IP40 protection, aluminum alloy shell |
|
Installation |
35mm din rail-mounted installation |
|
Dimension |
160mmx58mmx122mm |
|
Industry standard |
|
|
EMC |
EN61000-4-2(ESD), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 3.※The network port supports 6kV lightning protection |
|
Impact |
IEC60068-2-27 |
|
Falling |
IEC60068-2-32 |
|
Shock |
IEC60068-2-6 |
|
Warranty |
|
|
Warranty |
5 Years |
|
Certification |
CE/FCC/RoHS |
| Kodu | Model | Açıklama |
|---|---|---|
| MISCOM7210GBP-2GF-8GT | MISCOM7210GBP-2GF-8GT | MISCOM7210GBP-2GTS, 10xGbit BY-PASS Managed Switch |
