Switching

Backplane Bandwidth

12.8Gps

Buffer Size

4.1 Mbit

MAC Table Size

8K

Interface

100M Copper Port

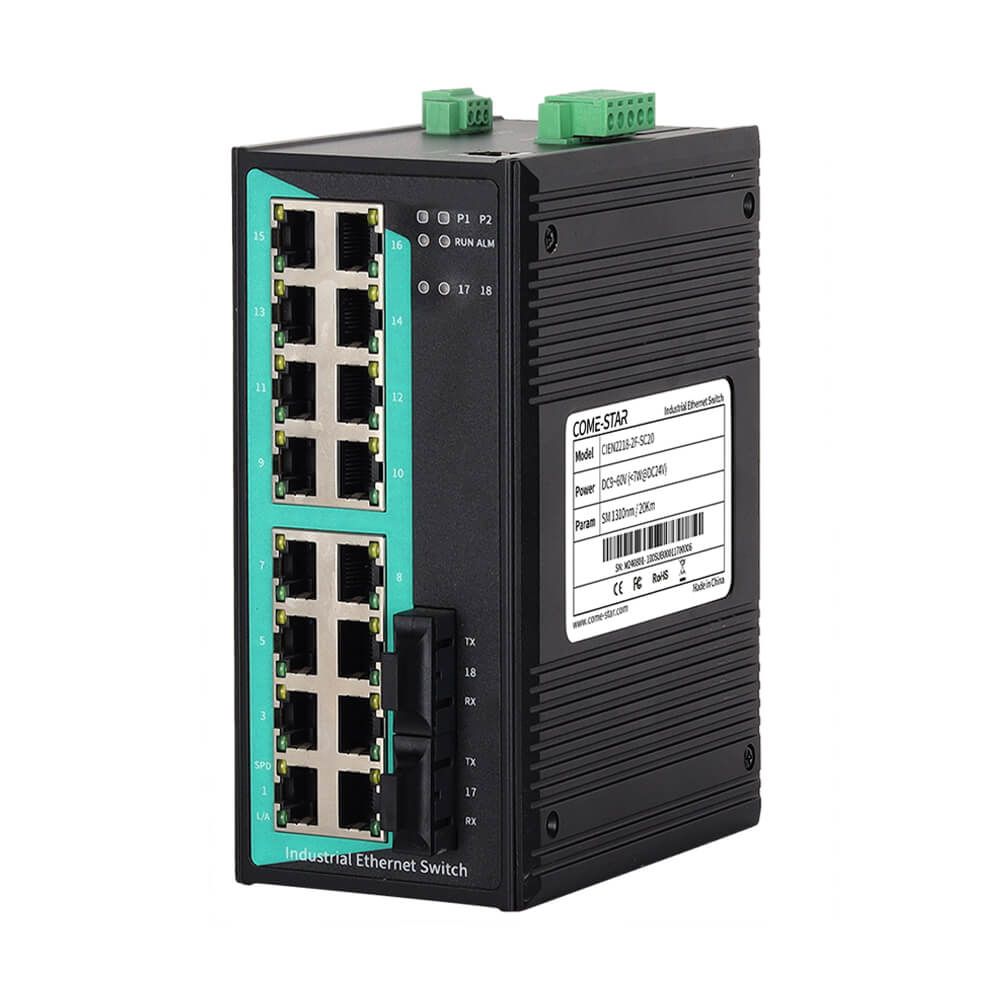

16 * 10/100M Base-T(X) Auto-sensing RJ45 copper port supports full/half duplex, Auto-MDI /MDI-X connections

100M Fiber Port

2 * 100M Base-FX port, support SC/FC/ST connections, single mode/multimode transmission distance optional

Relay

1 relay alarm output, 3-pin 3.18mm terminal block

Status LED

Power indicator, operation indicator, alarm indicator, interface   indicator

Power supply

Input Voltage

DC model: DC9V~60V, dual power input, reverse connection protection

AC model: AC85V~264V (frequency: 47~63Hz) or DC110V~370V

Power Consumption

<7W@DC24V

Connection

5-pin 5.08mm terminal block

Physical Characteristics

Dimensions

160 × 74 × 122mm (DIN rail mounting   clip excluded)

Installation

35mm standard DIN-rail installation

IP Code

IP40

Weight

About 1.2kg

Working Environment

Operating Temp.

DC model: -40℃~+85℃

AC model: -40°C to +75°C

   Relative Humidity

   5%~95% (No condensing)

Industry Standard

EMC Protecting

IEC 61000-4-2 (ESD): Level 4

IEC 61000-4-5 (Surge): Level 4

※The network port supports 6kV lightning protection

IEC 61000-4-4 (EFT): Level 4

Certification

CE, RoHS, FCC

Input Voltage

DC 48~57V, dual inputs for power redundancy

(When there is a PD load that complies with the IEEE802.3at standard, please use the DC 51~57V power adapter for power input. In addition, the maximum power consumption of the power adapter must be higher than the total power consumption of the device and each PD load)

Power Consumption

<12W@DC48V (without PD), the maximum PoE power consumption of the entire machine is 240W

Connection

5.08mm pitch 5-pin terminal block

Physical Characteristics

Dimensions

160×58×122mm (excluding DIN rail mounting clip and connectors)

Installations

35mm standard DIN rail installation

IP Code

IP40

Weight

0.91kg

Working Environment

Operating Temp

-40°C to +75°C

Storage Temp

-40°C to +85°C

Relative Humidity

5%~95% (non-condensing)

Industry Standard

EMC

IEC 61000-4-2 (ESD): Level 4 (Contact discharge ±8kV, air discharge ±15kV)

IEC 61000-4-5 (Surge): Level 3 (Power supply, network port: Common-mode ±2kV, differential-mode ±1kV)

IEC 61000-4-4 (EFT): Level 3 (Power supply: ±2kV; Ethernet port: ±2kV)

Certification

CE, FCC, RoHS
