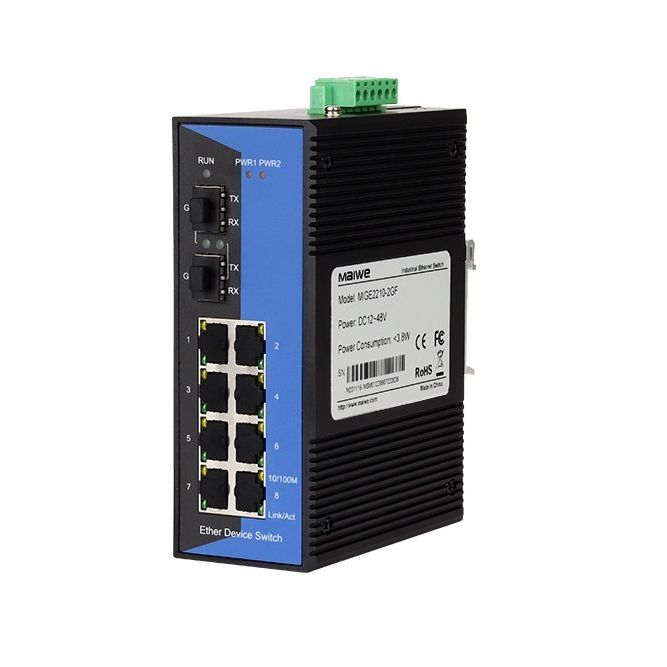

MIGE2210, 10x1Gbit RJ45/Fiber/SFP Layer2 Switch
10-port SFP/Fiber/RJ45 Gigabit Layer 2 Din-Raya Monte, Unmanaged Endüstriyel Ethernet Switch
-MAC adres, öğrenme ve yaşlandırma desteği
-Fansız tasarım, IP40 koruma sınıfı
-Enerji beslemesinin kesilmesi durumunda alarm kontağı alma imkanı
-Çalışma durum LED leri
-Endüstriyel yardımcı besleme: Ters bağlantı koruması/aşırı akım/aşırı gerilim/EMC korumalı
-40 ila 85°C arası geniş sıcaklık aralığı
-Zorlu endüstriyel ortamlara uygun tasarım
|
Technical Parameters |
|
|
Protocol Standard |
IEEE802.3(Ethernet), IEEE802.3u(100Base-TX&100Base-FX), IEEE802.3x (Flow control), IEEE802.3z(1000Base-LX), IEEE802.3ab(1000Base-T) |
|
Switch Capability |
|
|
MAC Table Size |
8k |
|
Switch Bandwidth |
5.6Gbps |
|
Switch Delay |
<5μs |
|
Interface |
|
|
Gigabit port |
Number: 2 |
|
Connector: Gigabit SFP port(LC interface, single/multimode optional) or 1000M RJ45 port |
|
|
Baud rate: 1000Base-FX,10/100/1000Tx auto-negotiation |
|
|
100M port |
Number: 8 |
|
Connector: 1×9 fixed fiber port(single/multimode optional, SC/FC/ST interface) or RJ45 100M TX port |
|
|
Baud rate:100Base-FX(fiber port), Self-adaption 10/100Mbase-TX |
|
|
Terminal block for relay alarm |
5.08mm terminal block, 1A@24VDC |
|
Terminal block for power input |
5.08mm terminal block |
|
Communication Distance |
|
|
Twisted-pair |
100m(CAT5/CAT5e cable) |
|
Multimode fiber |
100M multimode: 850nm, 2km; Gigabit multimode: 850nm, 500m |
|
Single mode fiber |
100M single mode: 1310nm, 20/40km, 1550nm, 60/80km; Gigabit single mode: 1310nm, 20km; |
|
LED Indicator Lights |
|
|
Front panel LED lights |
Port light: LINK/ACT; SPEED |
|
System work light: RUN |
|
|
Power status light: PWR1/PWR2 |
|
|
Power |
|
|
Input power |
DC12~48V DC48V AD220V |
|
Power consumption |
<6.4W@(MAX) |
|
Overload protection |
support |
|
Inversed protection |
support |
|
Working Environment |
|
|
Operating temperature |
-40°C~85°C |
|
Storage temperature |
-40°C~85°C |
|
Ambient humidity |
5%~95% |
|
Physical Characteristics |
|
|
Shell |
IP40 protection, aluminum alloy shell |
|

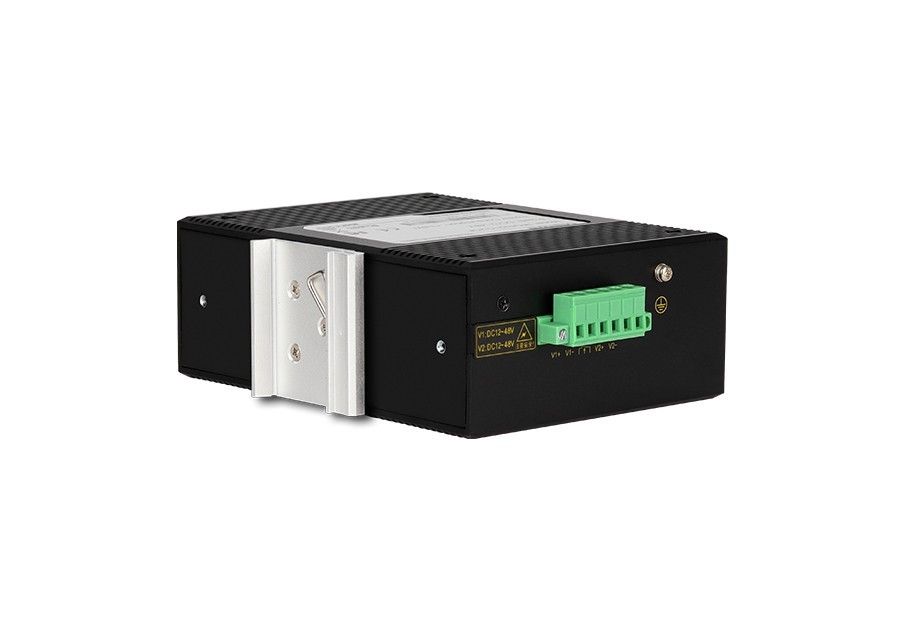

Installation |
Standard 35mm DIN-rail Mounting |
|
Dimension |
54.0mm*144.0mm*110.0mm (W×H×D) |
|
Industry Standard |
|
|
EMC |
EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5 |
|
Impact |
IEC60068-2-27 |
|
Falling |
IEC60068-2-32 |
|
Shock |
IEC60068-2-6 |
|
Warranty |
|
|
Warranty |
5 Years |
|
Certification |
CE, FCC, RoHS |
| Kodu | Model | Açıklama |
|---|---|---|
| MIGE2210-2GF | MIGE2210 | 2-port Gigabit SFP + 8-port 10/100Tx,2xDC12~48V |
| MIGE2210-2GF-DC48 | MIGE2210 | 2-port Gigabit SFP + 8-port 10/100Tx,2xDC48V(DC36~72V) |
| MIGE2210-2GF-AD220 | MIGE2210 | 2-port Gigabit SFP + 8-port 10/100Tx, AC85-264V/DC110~370V |
| MIGE2210-2GF-4M-SC02 | MIGE2210 | 2-port Gigabit SFP + 4-port 100FX +4-port 10/100Tx,2xDC12~48V,MM,SC,2KM |
| MIGE2210-2GF-4M-ST02 | MIGE2210 | 2-port Gigabit SFP + 4-port 100FX +4-port 10/100Tx,2xDC12~48V,MM,ST,2KM |
| MIGE2210-2GF-4M-FC02 | MIGE2210 | 2-port Gigabit SFP + 4-port 100FX +4-port 10/100Tx,2xDC12~48V,MM,FC,2KM |
| MIGE2210-2GF-4S-SC20 | MIGE2210 | 2-port Gigabit SFP + 4-port 100FX +4-port 10/100Tx,2xDC12~48V,SM,SC,20KM |
| MIGE2210-2GF-4S-ST20 | MIGE2210 | 2-port Gigabit SFP + 4-port 100FX +4-port 10/100Tx,2xDC12~48V,SM,ST,20KM |
| MIGE2210-2GF-4S-FC20 | MIGE2210 | 2-port Gigabit SFP + 4-port 100FX +4-port 10/100Tx,2xDC12~48V,SM,FC,20KM |
| MIGE2210-2GF-4M-SC02-DC48 | MIGE2210 | 2-port Gigabit SFP + 4-port 100FX +4-port 10/100Tx,2xDC48V(DC36~72V),MM,SC,2KM |
| MIGE2210-2GF-4M-ST02-DC48 | MIGE2210 | 2-port Gigabit SFP + 4-port 100FX +4-port 10/100Tx,2xDC48V(DC36~72V),MM,ST,2KM |
| MIGE2210-2GF-4M-FC02-DC48 | MIGE2210 | 2-port Gigabit SFP + 4-port 100FX +4-port 10/100Tx,2xDC48V(DC36~72V),MM,FC,2KM |
| MIGE2210-2GF-4S-SC20-DC48 | MIGE2210 | 2-port Gigabit SFP + 4-port 100FX +4-port 10/100Tx,2xDC48V(DC36~72V),SM,SC,20KM |
| MIGE2210-2GF-4S-ST20-DC48 | MIGE2210 | 2-port Gigabit SFP + 4-port 100FX +4-port 10/100Tx,2xDC48V(DC36~72V),SM,ST,20KM |
| MIGE2210-2GF-4S-FC20-DC48 | MIGE2210 | 2-port Gigabit SFP + 4-port 100FX +4-port 10/100Tx,2xDC48V(DC36~72V),SM,FC,20KM |
| MIGE2210-2GF-4M-SC02-AD220 | MIGE2210 | 2-port Gigabit SFP + 4-port 100Fx+4-port10/100Tx, AC85-264V/DC110~370V,MM,SC,2KM |
| MIGE2210-2GF-4M-ST02-AD220 | MIGE2210 | 2-port Gigabit SFP + 4-port 100Fx+4-port10/100Tx, AC85-264V/DC110~370V,MM,ST,2KM |
| MIGE2210-2GF-4M-FC02-AD220 | MIGE2210 | 2-port Gigabit SFP + 4-port 100Fx+4-port10/100Tx, AC85-264V/DC110~370V,MM,FC,2KM |
| MIGE2210-2GF-4S-SC20-AD220 | MIGE2210 | 2-port Gigabit SFP + 4-port 100Fx+4-port10/100Tx, AC85-264V/DC110~370V,SM,SC,20KM |
| MIGE2210-2GF-4S-ST20-AD220 | MIGE2210 | 2-port Gigabit SFP + 4-port 100Fx+4-port10/100Tx, AC85-264V/DC110~370V,SM,ST,20KM |
| MIGE2210-2GF-4S-FC20-AD220 | MIGE2210 | 2-port Gigabit SFP + 4-port 100Fx+4-port10/100Tx, AC85-264V/DC110~370V,SM,FC,20KM |
