Switching

Backplane Bandwidth

12.8Gps

Buffer Size

4.1 Mbit

MAC Table Size

8K

Interface

100M Copper Port

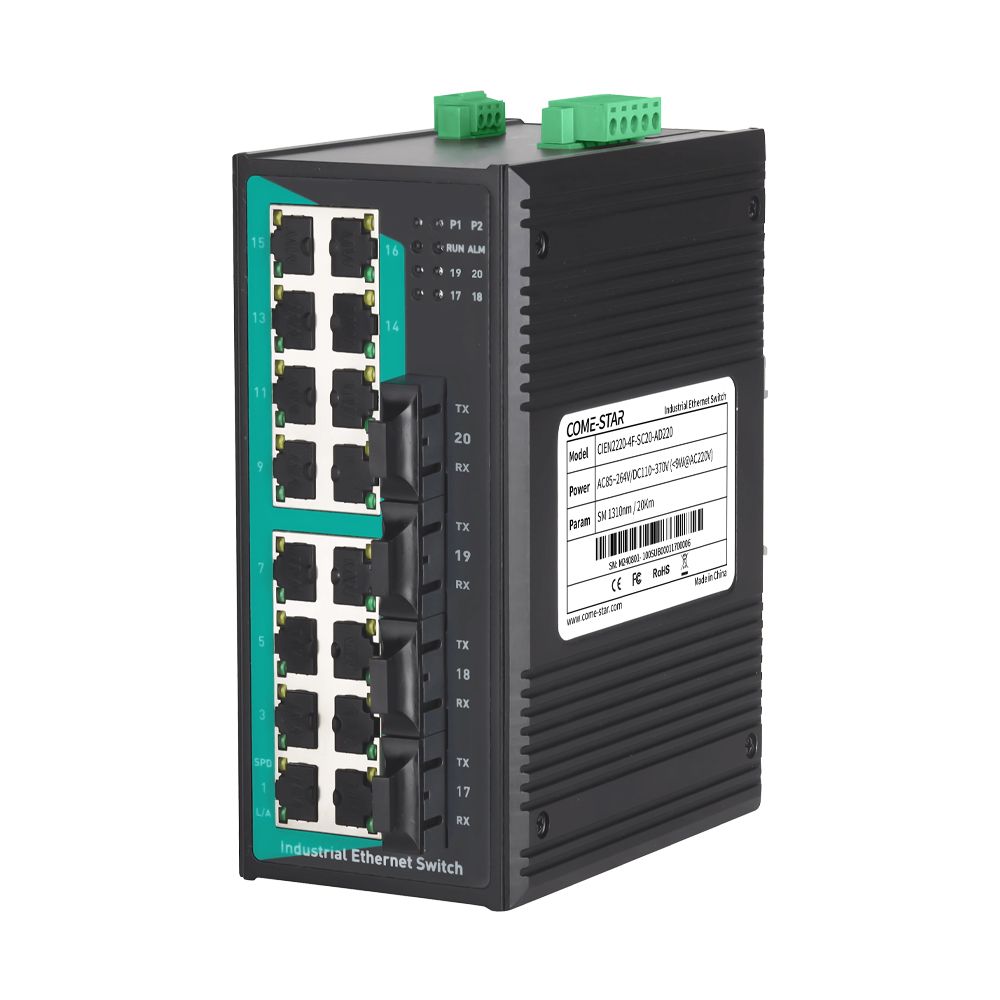

16 * 10/100M Base-T(X) Auto-sensing RJ45 copper port supports full/half duplex, Auto-MDI /MDI-X connections

100M Fiber Port

2 * 100M Base-FX port, support SC/FC/ST connections, single mode/multimode transmission distance optional

Relay

1 relay alarm output, 3-pin 3.18mm terminal block

Status LED

Power indicator, operation indicator, alarm indicator, interface   indicator

Power supply

Input Voltage

DC model: DC9V~60V, dual power input, reverse connection protection

AC model: AC85V~264V (frequency: 47~63Hz) or DC110V~370V

Power Consumption

<7W@DC24V

Connection

5-pin 5.08mm terminal block

Physical Characteristics

Dimensions

160 × 74 × 122mm (DIN rail mounting   clip excluded)

Installation

35mm standard DIN-rail installation

IP Code

IP40

Weight

About 1.2kg

Working Environment

Operating Temp.

DC model: -40℃~+85℃

AC model: -40°C to +75°C

   Relative Humidity

   5%~95% (No condensing)

Industry Standard

EMC Protecting

IEC 61000-4-2 (ESD): Level 4

IEC 61000-4-5 (Surge): Level 4

※The network port supports 6kV lightning protection

IEC 61000-4-4 (EFT): Level 4

Certification

CE, RoHS, FCC

Dimensions

160×58×122mm (excluding DIN rail mounting clip and connectors)

Installations

35mm standard DIN rail installation

IP Code

IP40

Weight

0.91kg

Working Environment

Operating Temp

-40°C to +75°C

Storage Temp

-40°C to +85°C

Relative Humidity

5%~95% (non-condensing)

Industry Standard

EMC

IEC 61000-4-2 (ESD): Level 4 (Contact discharge ±8kV, air discharge ±15kV)

IEC 61000-4-5 (Surge): Level 3 (Power supply, network port: Common-mode ±2kV, differential-mode ±1kV)

IEC 61000-4-4 (EFT): Level 3 (Power supply: ±2kV; Ethernet port: ±2kV)

Certification

CE, FCC, RoHS
